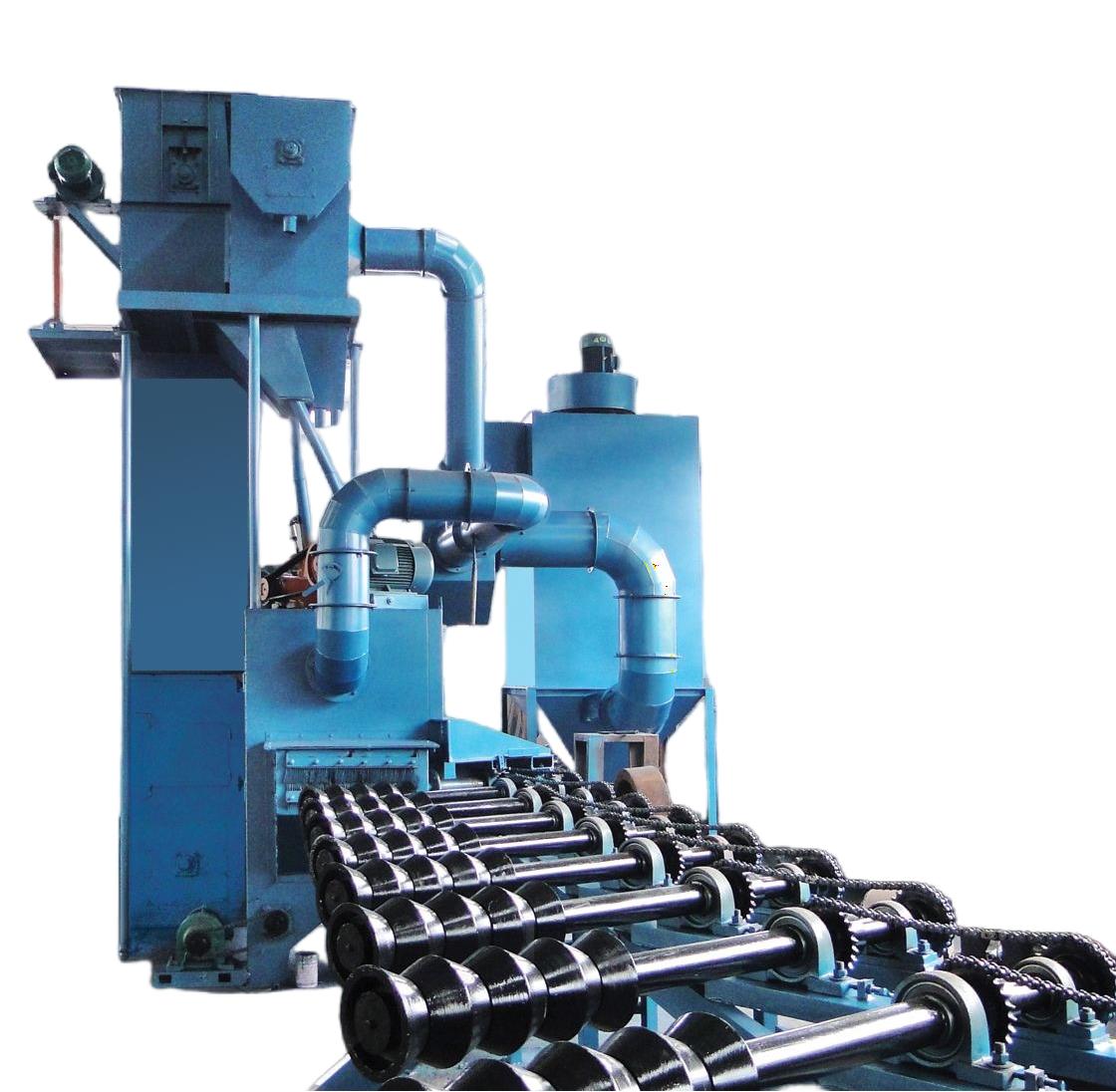

Shot blasting machine for inner wall of steel pipe

QGN series steel pipe inner wall shot blasting machine is a very advanced and efficient solution specially designed for cleaning the oxides and surface attachments on the inner surface of steel pipes. The machine fires (jet) high-speed projectiles to the inner surface of the pipeline to effectively remove impurities and improve the overall quality and service life of the pipeline.

Products Details

One of the main features of this machine is the ability to produce microplastic deformations on the steel pipe surface. This process helps to enhance the pipe's strength, surface corrosion resistance and paint film adhesion, making it more durable and resistant to wear and tear. In addition, shot blasting machines are specifically designed to relieve weld stress, ensuring that the pipe maintains its structural integrity over the long term.
Technical parameters of QGN series steel pipe inner wall shot blasting machine:
Model Cleaning size/mm Cleaning speed( m/min ) Use
QGN100 φ50-φ300 1-4 Inner wall throwing (spraying) shot cleaning machine
QGN700 φ325-φ720 1-2
QGN1000 φ720-φ1016 1-4
QGN1500 φ1016-φ1500 1-4
Steel pipe inner wall shot blasting machine is widely used in petrochemical, steel, urban central heating, water supply and drainage and other industries. It is an invaluable asset for any industry that relies on the use and maintenance of pipelines. The device has been carefully designed to incorporate various components to ensure its efficient function. The machine is composed of front and rear moving auxiliary chambers, left and right inner wall hydraulic mobile shot blasters, belt conveyor type projectile conveying mechanism, bottom belt conveyor projectile collection system, hoist, maintenance platform, separator, strong wind device, etc. Suction pill dust removal system, inner wall shot blasting machine traveling mechanism, steel pipe loading and unloading mechanism, hydraulic and electrical control system.The front and rear moveable auxiliary chambers are essential to ensure smooth and seamless operation, while the left and right inner wall hydraulically moveable blast wheels provide precision and accuracy for targeted blasting. The belt-conveyed projectile conveying mechanism ensures the seamless flow of projectiles, and the bottom belt conveys the projectile collection system to facilitate the collection and disposal of debris. In order to ensure the safety and ease of use, the machine is equipped with a maintenance platform for easy maintenance and a strong wind suction dust removal system to create a clean and healthy working environment.Steel pipe inner wall shot blasting machine is a reliable and technologically advanced solution for cleaning and maintaining the inner surface of steel pipes. It can enhance the strength, corrosion resistance and paint adhesion of the pipeline, and significantly improve the quality and service life of the pipeline. Reliable and efficient, this machine is a must-have for any industry that relies on pipelines for its operations.
